After more than a decade working with semiconductor equipment manufacturers and fabs, I have seen a recurring pattern: quartz components are often treated as simple consumables—until they cause contamination, unexpected downtime, or yield loss. In high-temperature and plasma-driven processes, quartz parts for semiconductor equipment are not just structural elements; they are process-critical components.

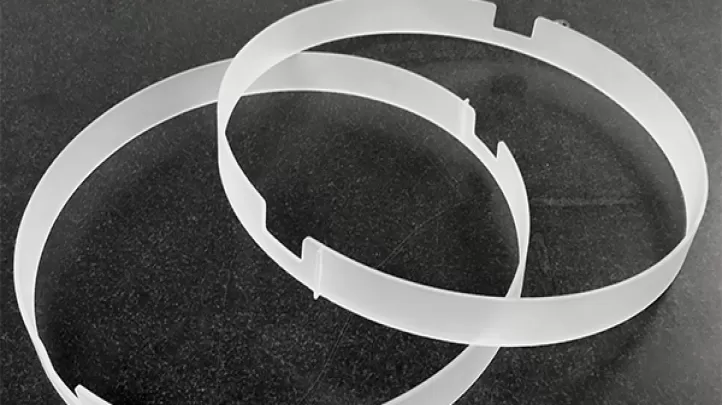

Whether you are sourcing quartz tubes, quartz rings, quartz boats, or custom quartz chambers, understanding what to evaluate before purchasing can help avoid high operational costs. Below are the five most important factors every engineer or procurement specialist should assess.

What Type of Quartz is Being Used?

Not all quartz materials are suitable for semiconductor applications.

In this industry, we typically refer to fused quartz or high purity quartz glass. The distinction matters. Semiconductor-grade quartz must have extremely low trace metal content and high SiO₂ purity—often 99.99% (4N) or higher.

Key points to evaluate:

• Purity level (SiO₂ content)

• Trace metals such as Na, K, Li, Fe, Al

• Bubble and inclusion density

• Homogeneity of the material

Even parts that look visually identical can differ significantly in chemical composition. Trace metal contamination can diffuse into wafers during high-temperature diffusion or oxidation processes, directly affecting device performance.

For diffusion furnaces, LPCVD systems, oxidation tubes, and epitaxy tools, I always recommend requesting material analysis data such as ICP-MS results. If a supplier cannot provide trace element testing, that is a red flag.

In semiconductor manufacturing, material purity equals process stability.

Can the Quartz Withstand High Temperatures?

Most semiconductor thermal processes operate between 800°C and 1200°C. Quartz components inside diffusion furnaces and CVD chambers must maintain structural integrity under prolonged thermal cycling.

Important properties include:

• Softening point

• Thermal expansion coefficient

• Thermal shock resistance

• Devitrification resistance

Quartz has excellent high-temperature stability compared to many materials, but not all quartz performs equally. Lower-quality quartz may deform, sag, or devitrify after repeated heating cycles.

Thermal expansion consistency is particularly critical in long quartz tubes. Slight dimensional changes can affect alignment, sealing, and gas flow uniformity. In vertical furnaces, tube deformation can cause wafer misalignment or boat friction.

When evaluating quartz parts for high temperature semiconductor processes, ask:

1. Has the material been tested for thermal cycling durability?

2. What is the maximum continuous operating temperature?

3. Is the quartz synthetic or natural fused?

In high-end semiconductor applications, synthetic fused silica often provides superior purity and performance.

Are the Dimensions Accurate?

Precision machining is non-negotiable in semiconductor equipment.

Quartz components must meet tight dimensional tolerances to ensure compatibility with existing tools. Even minor deviations can cause:

• Seal leakage

• Mechanical stress

• Installation difficulty

• Gas flow instability

For example, quartz rings and flanges must align precisely with metal chambers. Quartz boats must maintain uniform wafer spacing to ensure consistent thermal distribution.

When reviewing a supplier’s capability, verify:

• CNC machining accuracy

• Tolerance control (often within ±0.02 mm or tighter)

• Flatness and concentricity

• Consistency across production batches

In my experience, dimensional inconsistency is one of the most common reasons for repeated part replacement. Reliable suppliers maintain strict process control and final inspection procedures to guarantee repeatability.

For custom quartz parts based on technical drawings, the supplier should also provide engineering feedback if design optimization is necessary.

Is the Surface Smooth and Free of Cracks?

Surface quality directly affects both durability and contamination control.

Quartz surfaces that appear smooth to the naked eye may still contain micro-cracks or machining marks. These microscopic defects can:

• Initiate mechanical failure

• Generate particles

• Trap chemicals

• Accelerate corrosion under plasma exposure

In plasma etching or PECVD environments, poor surface finishing significantly shortens component lifetime.

Important surface parameters include:

• Surface roughness (Ra value)

• Flame polishing quality

• Edge rounding and stress reduction

• Micro-crack inspection

Flame polishing, when done properly, reduces surface stress and improves durability. However, excessive or poorly controlled flame treatment can introduce internal stress instead.

High-quality semiconductor quartz components undergo visual inspection under polarized light to detect internal strain and hidden cracks. This is a good question to ask suppliers: what inspection methods are used before shipment?

Surface integrity is not cosmetic—it directly impacts particle control and equipment uptime.

Has the Part Been Properly Cleaned and Certified?

Cleaning standards are often underestimated by new buyers.

Semiconductor quartz parts must undergo ultra-clean processing before delivery. Standard industrial cleaning is not sufficient. Residual particles or metallic contamination can compromise entire wafer lots.

Key cleaning considerations include:

• Semiconductor-grade chemical cleaning

• DI water rinsing

• Controlled drying environment

• Cleanroom packaging (Class 100 or better)

Double vacuum packaging when required

In addition, suppliers should provide:

• Certificate of Analysis (COA)

• Material traceability documentation

• Batch identification

• Final inspection report

Without proper documentation, you cannot guarantee process consistency. In regulated semiconductor manufacturing environments, traceability is essential for quality audits and root-cause analysis.

When contamination incidents occur, documentation becomes critical. Always verify that the supplier maintains full batch traceability.
